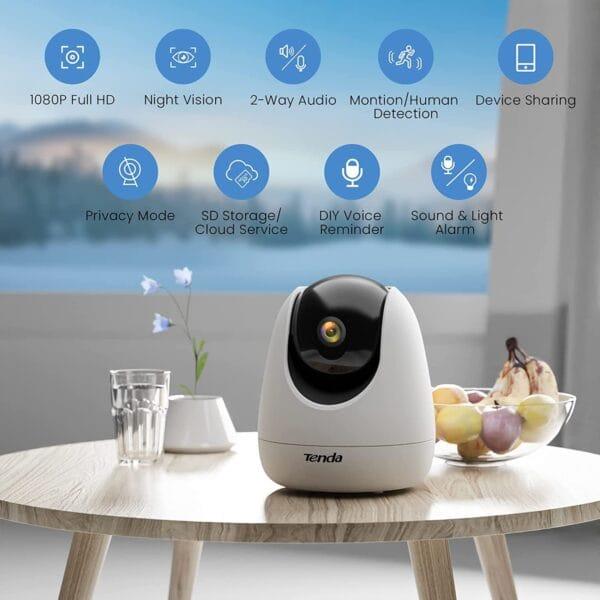

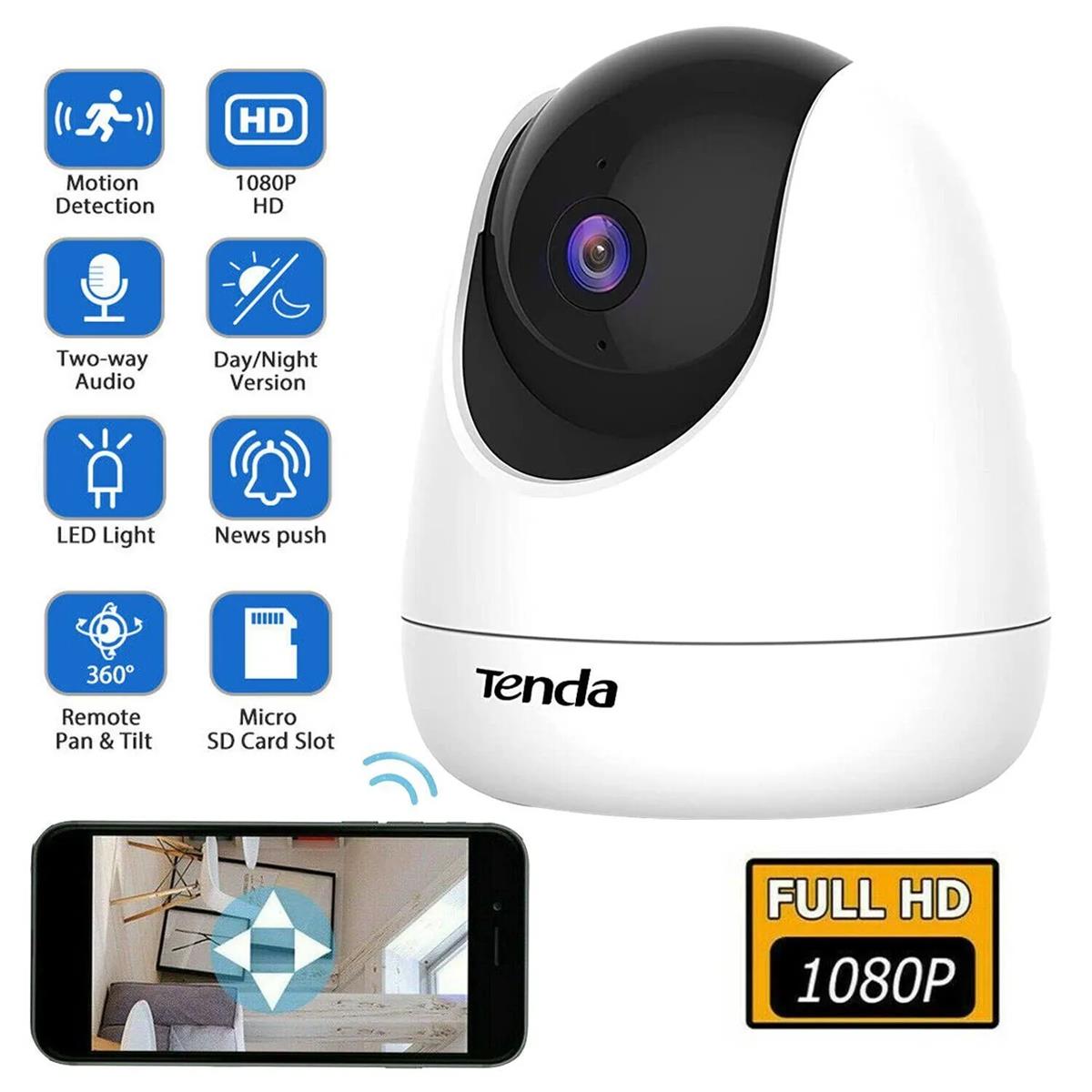

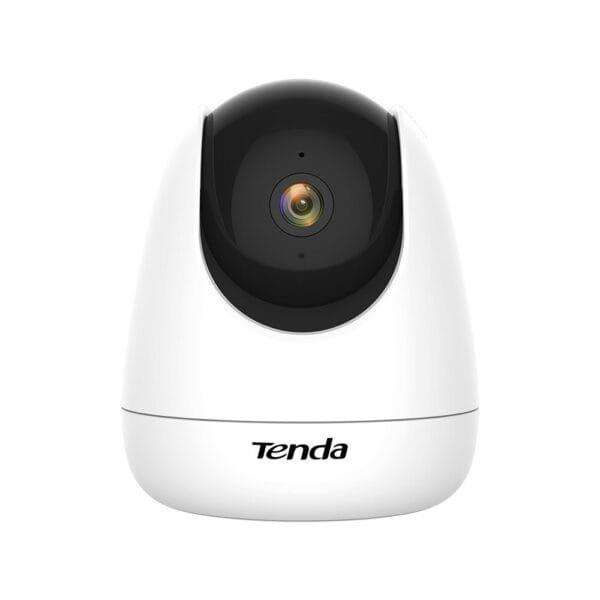

The Tenda CP3 is a high-performance home surveillance camera that offers comprehensive 360° coverage with 1080p high-definition resolution. Equipped with a 2-megapixel image sensor, it delivers clear and detailed video output.
Tenda CP3 1080P Specifications:
- Image Sensor: 1/3″ Progressive Scan CMOS sensor
- Lens: 4mm focal length, F2.2 aperture
- Field of View (FOV): Horizontal: 79.4°, Vertical: 48°, Diagonal: 87°
- Day/Night Mode: IR-Cut Filter with Auto-Switching
- Night Vision: Equipped with 4 IR lights, effective up to 10 meters (32 feet)
- Video Resolution:Main Stream: 1920 × 1080 (1080p), 1280 × 720 (720p)Sub Stream: 640 × 360
- Frame Rate: 1-15fps (default 15fps)
- Video Compression: H.264
- Audio Compression: G.711A
- Audio Features: Two-way audio with built-in microphone and speake

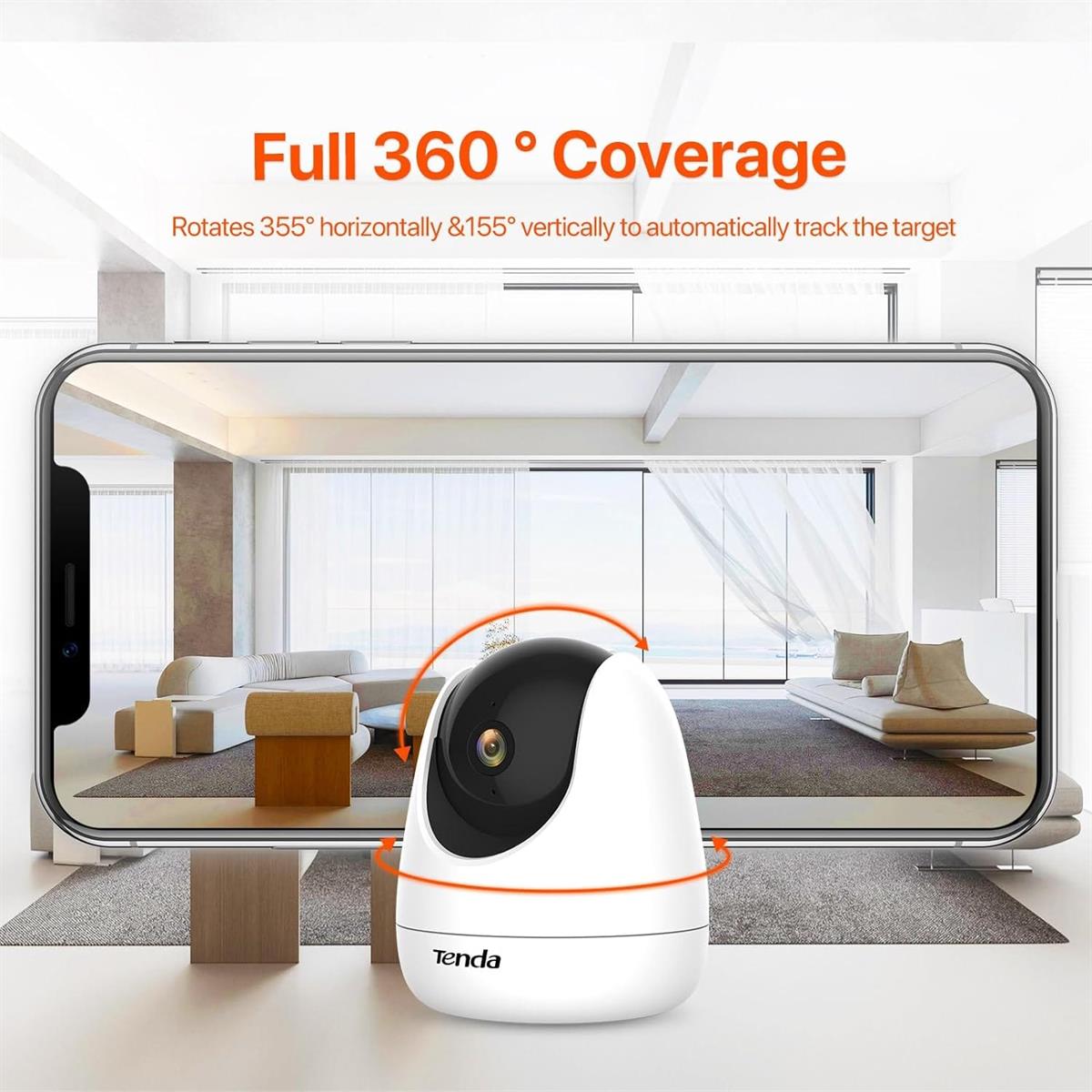

- Pan Range: 0° to 355°
- Tilt Range: -65° to 90°
- Presets: 6 configurable presets
- Patrol Modes: Panoramic Patrol and Preset Patrol
- Wireless Standard: IEEE 802.11 b/g/n
- Frequency Band: 2.4GHz (2412MHz-2472MHz)
- Transmission Rate: Up to 144Mbps
- Security Protocols: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
- Supported Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
WHAT’S IN THE BOX?
- The contents of package typically include:
- Tenda CP3 Camera
Power Adapter (9V 1A)
USB Power Cable
Mounting Bracket & Screws (for wall or ceiling installation)
Quick Installation Guide
