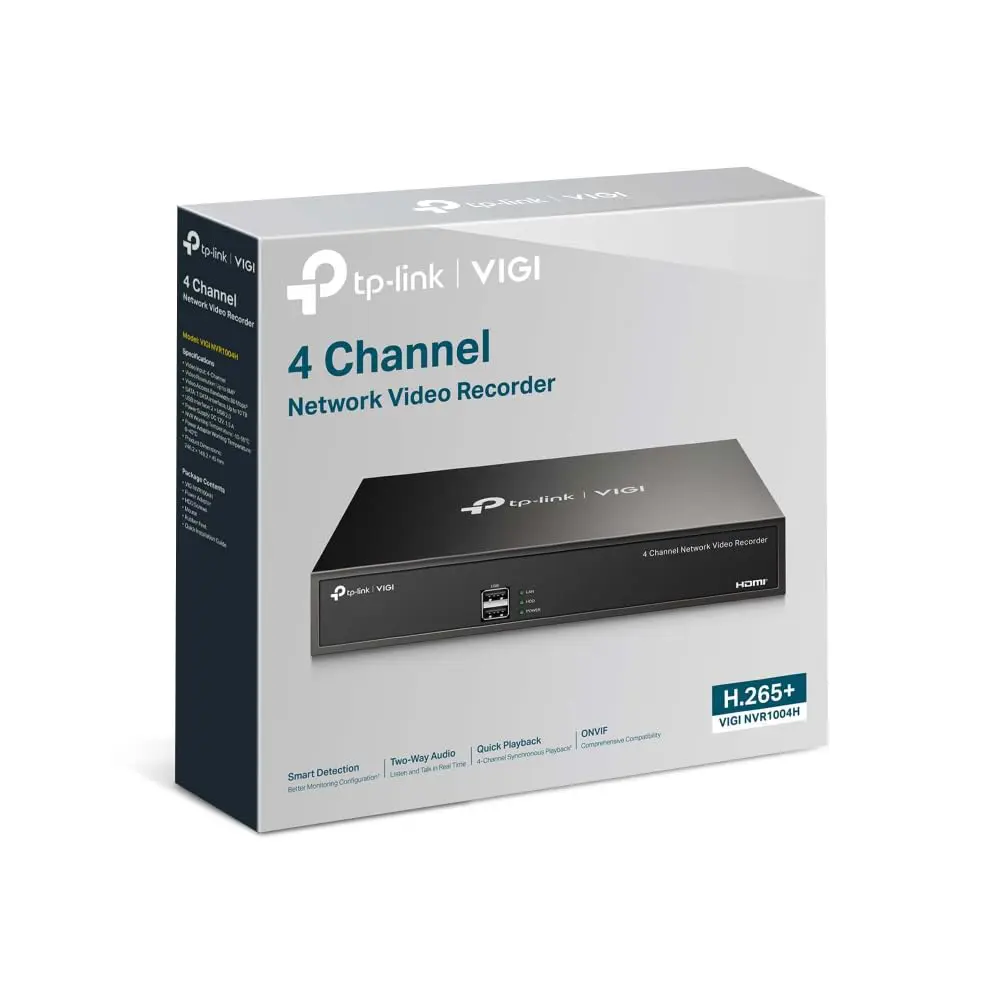

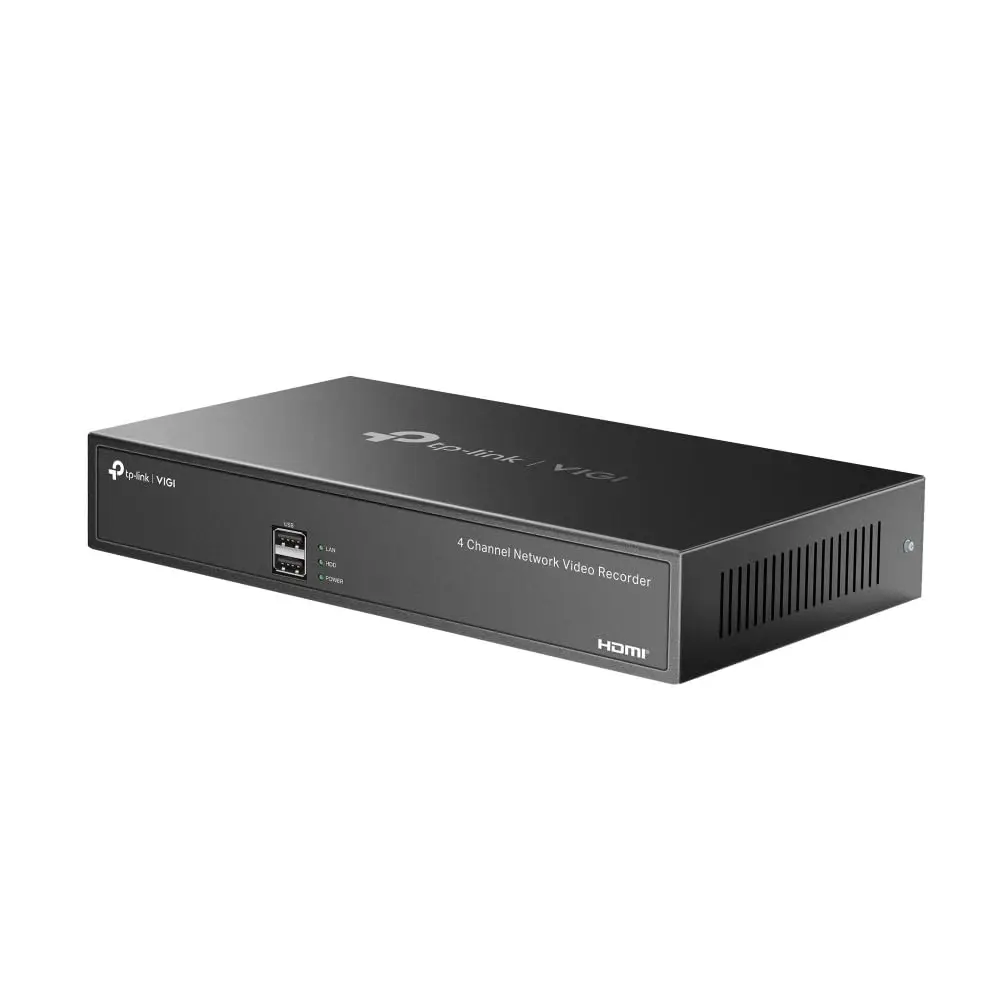

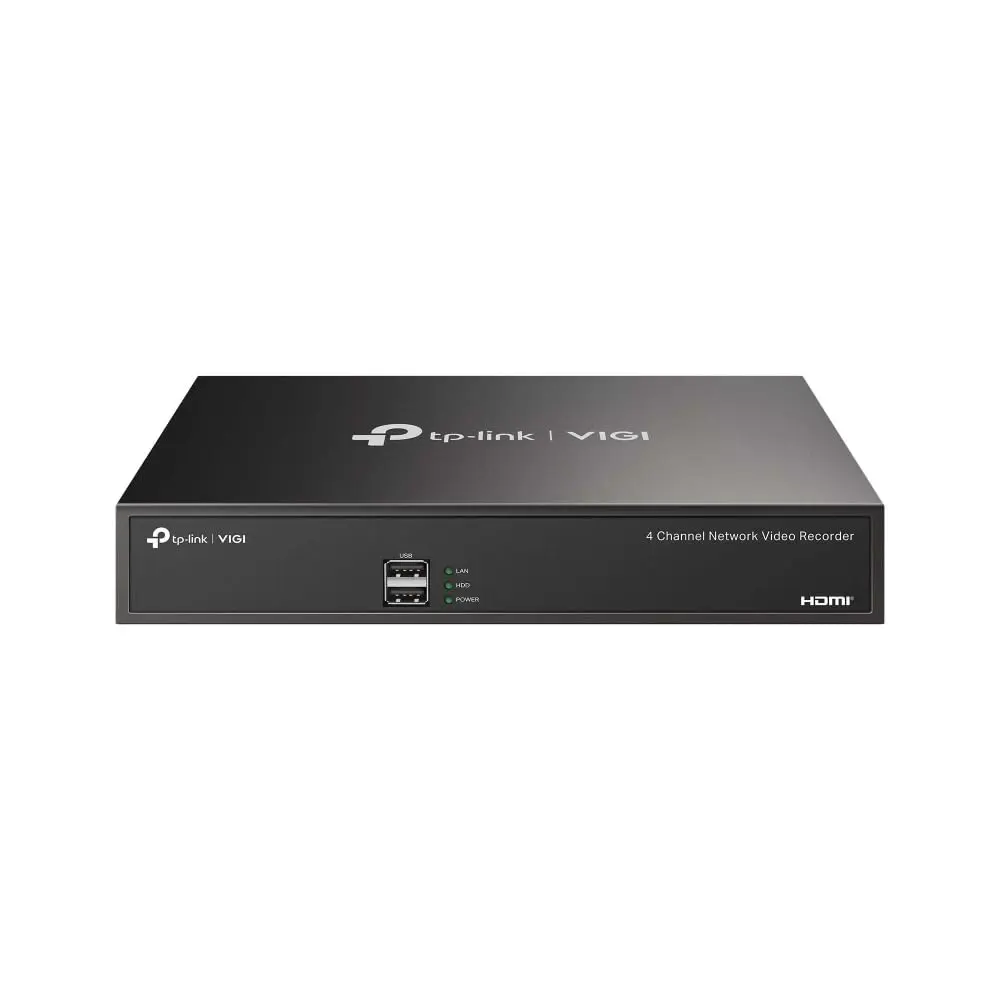

TP-Link VIGI NVR1004H 4 Channel Network Video Recorder | 4K HDMI NVR | 8MP | H.265+ | ONVIF, CGI| Plug & Play | Two-Way Audio | Remote Monitoring

4-Channel Live View and 4K HDMI Video Output
2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
4-Channel Synchronous Playback†
80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
1 SATA Interface (up to 10 TB) *
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring
Brand: TP-Link VIGI
Warranty: 1 Year Warranty
Availability: In Stock
Rs. 14,000


VIGI NVR1004H VIGI 4 Channel Network Video Recorder
VIGI NVR1004H VIGI 4 Channel Network Video Recorde
VIGI NVR1004H VIGI 4 Channel Network Video Recorde


Video and Audio
IP Video Input4-Channel
Incoming Bandwidth80 Mbps
Outgoing Bandwidth60 Mbps
HDMI Output Resolution1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output Resolution1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
Video Output ModeHDMI/VGA Simultaneous Output
Multi-View Display1/4
DECODING
Audio CompressionG.711A/G.711U/G.726
Video CompressionH.265+/H.265/ H.264+/H.264
Record Resolution8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback4-Channel
Capability2-ch @ 8MP, 4-ch @ 4MP
Record Management
Record Mode• Manual Recording
• Scheduling Recording
• Motion Detection Recording
Playback Mode• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
Backup Mode• Regular Backup
• Video Clip Backup
Playback Function• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off
NETWORK
ProtocolUPnP (Plug and Play), NTP (Network Timing)
Mobile Phone AccessAndroid, iOS
Web BrowserChrome (57+), Firefox (52+), Edge (91+)
InteroperabilityONVIF, CGI

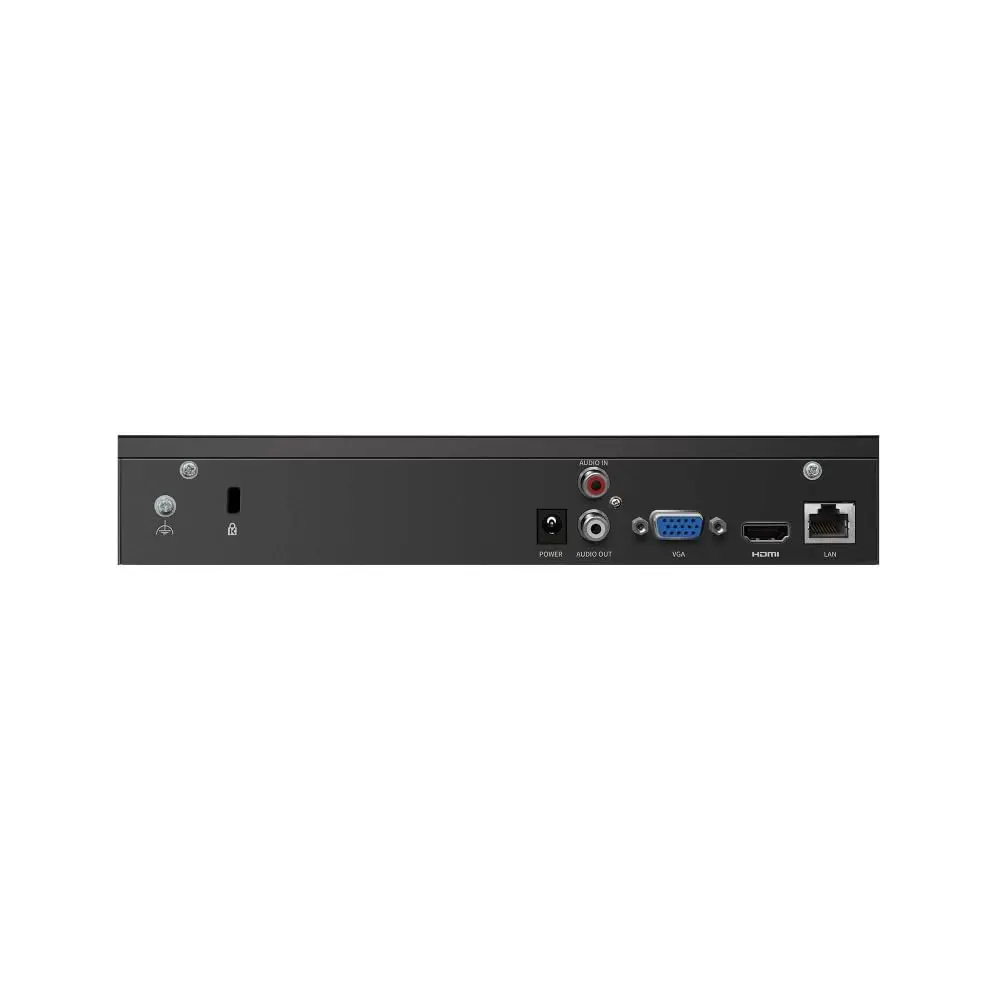

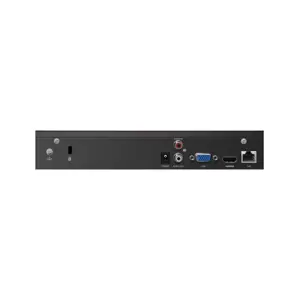

External Interface
Network Interface1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface2× USB 2.0
Audio Interface1, Audio In; 1, Audio Out
Alarm In/OutN/A
Serial InterfaceN/A
Power1× DC Jack
Reset Button1
SpeakerN/A
eSATAN/A
HDMI1
VGA1
HARD DISK
SATA1 SATA Interface
CapacityUp to 16 TB Capacity for Each HDD*
Alarm
General Alarm• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
GENERAL
Storage Temperature-40–70 °C
Storage Humidity10%~90% RH Non-Condensing
Package Content• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Rubber Feet
• Quick Installation Guide
Working Temperature• NVR: -10–55 °C
• Power Adapter: 0–40 °C
Working Humidity10%~90% RH Non-Condensing
Dimensions( W X D X H )246.2 × 148.2 × 45 mm
External Power SupplyDC 12V/1.5A
Net Weight0.59 kg
Gross Weight0.95 kg
Max. Power Consumption4.25 W (without disk)
CertificationsCE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
For additional version information, please go to the support page.

†The number of simultaneously playable channels may be fewer than four, or none, if the total resolution exceeds 16MP.

*HDD is not included.

**The NVR's alarm function requires the use of a camera.
