Microware Digital to Analog Audio HiFi Headphone Amplifier, Toslink & Coaxial Mutual Convert，with Volume Control

Microware 192KHz DAC Digital to Analog Converter SPDIF L/R RCA 3.5mm Jack Audio Adapter with Toslink to Coaxial

Overview:

This Microware Digital to Analog Audio Converter is designed for home or professional audio switching. It converts coaxial or Toslink digital audio signals to analog L/R audio and can be connected to external devices such as amplifiers via a standard RCA-type jack.

Features:

• Converts Coaxial or Toslink digital audio signals to analog L/R audio
• Supports volume adjustment
• Actually supports sampling rate at 192kHz/24bit
• Built-in high-fidelity amplifier chips, L/R and 3.5mm output can drive 16~300ohm impedance headphone/sound
• Supports coaxial input to Toslink output
• Easy to install and simple operation

Specifications:

• Power supply: DC 5V

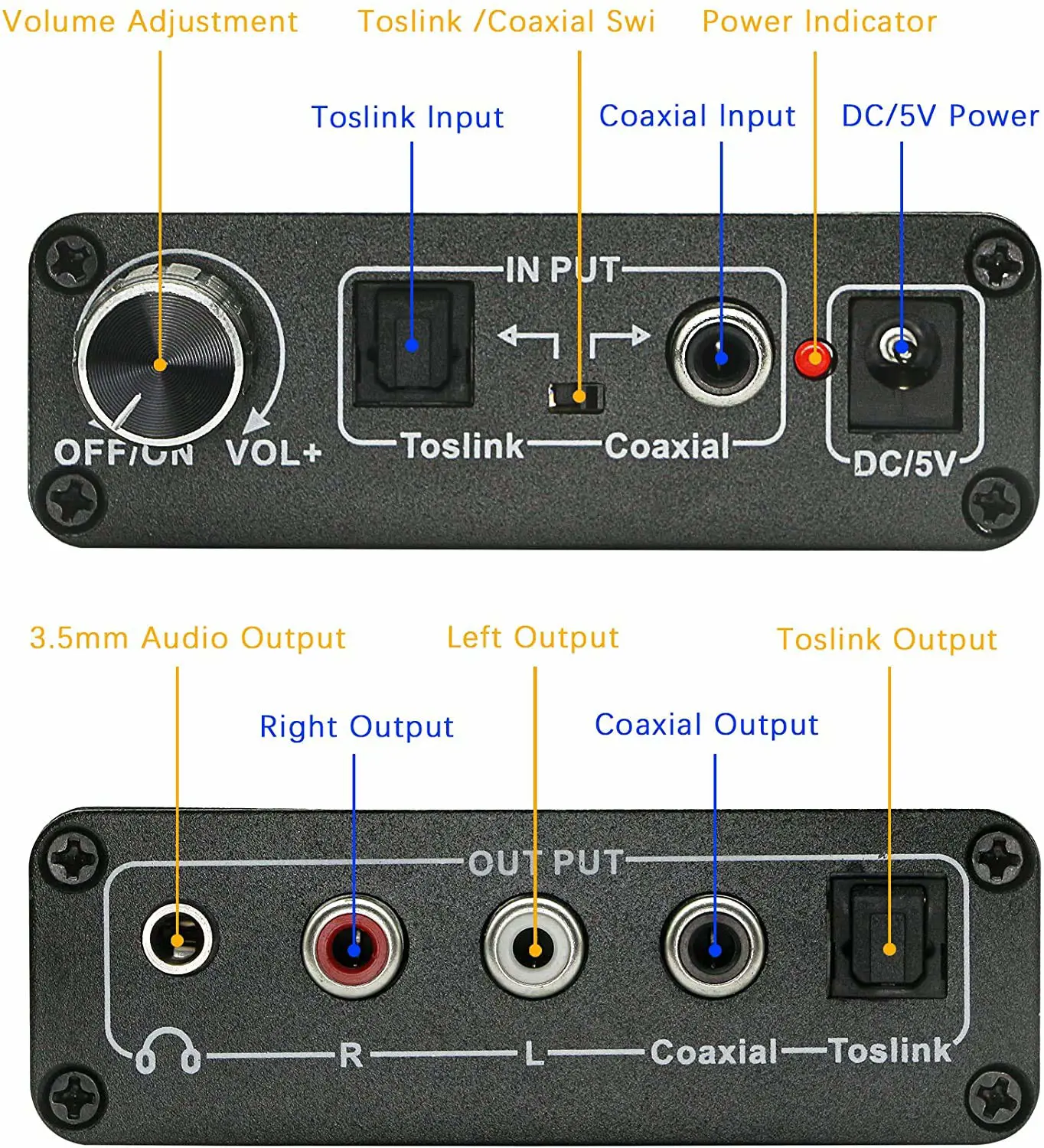

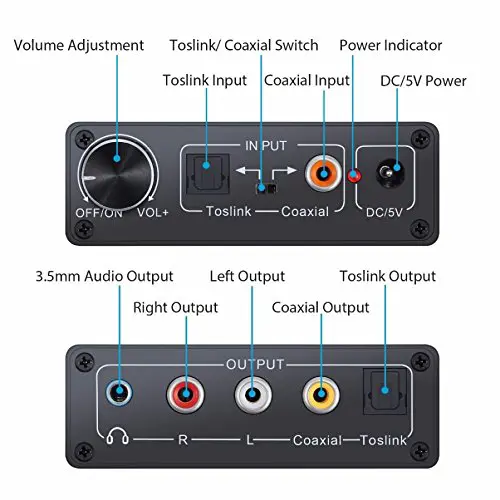

• Input: Toslink, Coaxial, Output: L/R, Toslink, Coaxial, 3.5mm audio
• Supported sample rates: 32KHZ, 44.1KHz, 48KHz, 96KHz, 192KHz
• Headphone impedance: 16 ~ 300ohm

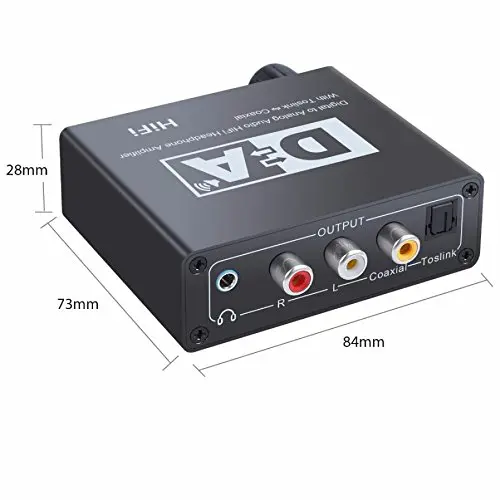

• Size: 81 x 71 x 25mm. Max output power: 200mW(16ohm), 20mW(300ohm)

This Digital to Analog Audio Converter is designed for home or professional audio switching. It converts coaxial or Toslink digital audio signals to analog L/R audio and can be connected to external devices such as amplifiers via a standard RCA-type jack. You can also 3.5mm headphone jack output, connect high-fidelity headphones. Built-in high-fidelity amplifier chips, headphones and RCA output port can easily push 16-300 ohm high-fidelity headphones.

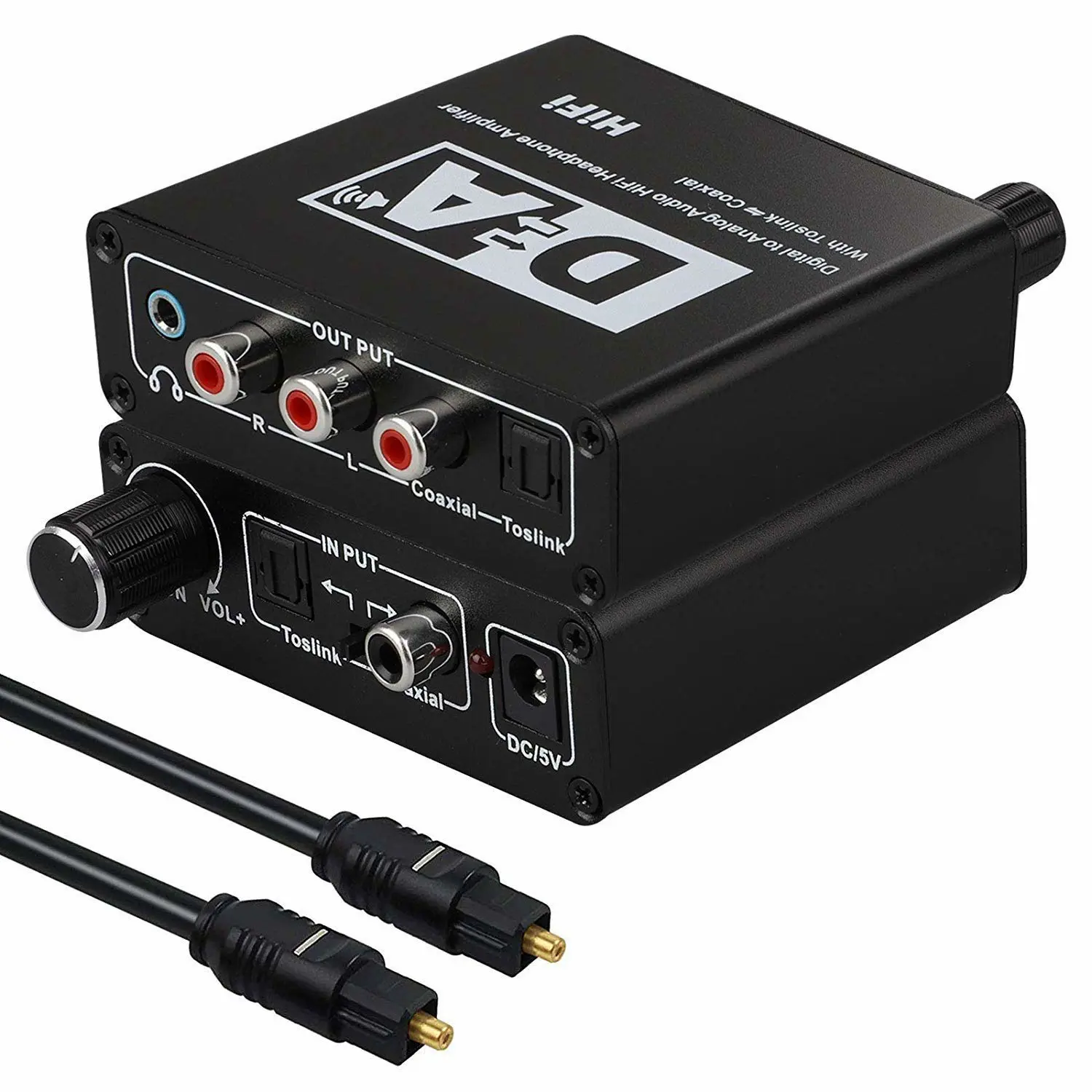

Package includes: 1 x Digital to analog converter

1 x Power adapter

1 x Toslink Cable (Optical Cable)

1 x User Manual

1 x Coaxial cable

NOTE: 1. There is a power switch on the volume knob, please turn on the power switch before using the DAC. 2. Please set the Audio Output to the PCM/LPCM Format. 3. For Samsung TV, if there is no sound even you set the audio output to the PCM/LPCM format, please turn ON the TV external speakers (Menus-Sounds- Speaker Setup- HESB/external speaker-ON) 4. This converter doesn't Support 5.1 Channel Such As Dolby and DTS. 5. PS4 Pro and PS4 Slim CANNOT use this converter as they haven't Optical fiber output interface.

Digital Analog Converter

This DAC Converter Converts Coaxial or Toslink Digital Audio Signals to Analog L/R Audio and Can Be Connected to External Devices Such as Amplifiers via a Standard RCA-Type Jack, You Can Also Choose 3.5mm Headphone Jack Output, Connect High-Fidelity Headphones, It's Ideal for Home or Professional Audio Switching

You can also 3.5mm headphone jack output, connect high-fidelity headphones,The converter is small and easy to install,Built-in high-fidelity amplifier chips, head phones and RCA output port can easily push 16-300 ohm high-fidelity headphones,Product support power off,the volume size adjustment,more easily adapt to different sources,different environments,The product also supports Toslink input to Toslink,coaxial output,coaxial input to Toslink,coaxial output,can adapt to more digital audio amplifier interface.

192KHz Sampling Rate Achieved

• It Actually Supports Sampling Rate at 32, 44.1, 48, 96 and 192 KHz, and 24-Bit S/PDIF Incoming Bit Stream on Left and Right Channels
• Bidirectional Switch : Bidirectional Switch Design Makes It More Than a DAC Converter, Not only Supports Digital to Analog, Also Supports Digital to Digital(Support Toslink to Coaxial and Coaxial to Toslink) PLEASE NOTE: This Converter Supports Digital to Analog BUT NOT Support Analog to Digital

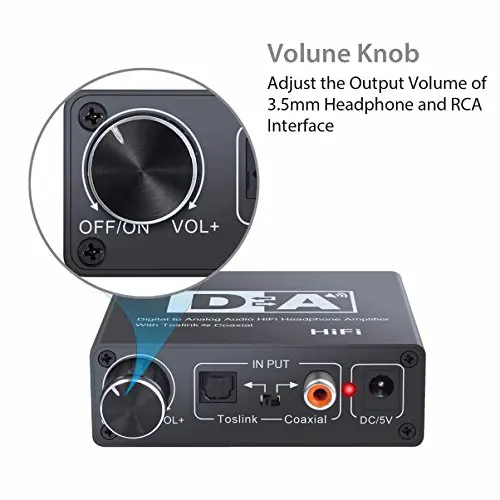

Supports Volume Adjustment and Stereo Audio Output

Good Anti-Interference Function Makes the Sound Pure and Clear, and There Are Professional Built-In High-Fidelity Audio Amplifier Chip and Volume Adjusting Switch, Allowing You to Drive Your Headphone Directly and Adjust the Output Volume; Besides, Noise Can Be Eliminated When Signal Input, and Automatically Mute While Non-Audio Signal is Input

Plug and Play:

Comes with 4.0 OD Optical Cable, Coaxial Cable and Power Adapter, No Need to Install Extra Programs, Just Plug and Play(Note: This Converter Doesn't Support 5.1 Channel Such as Dolby and DTS; Please Set the Audio Output to PCM or LPCM Before Using; PS4 Pro and PS4 Slim Can't Use This Converter)
